At 3D Sea LLC, we specialize in producing precise linework and 3D model files formatted specifically for GPS survey and machine‑control systems. Whether your crews rely on Topcon, Trimble, or Carlson SurvPC, our deliverables integrate seamlessly— minimizing field errors, reducing setup time, and keeping your project on schedule.
Our Services
Linework Cleanup & Standardization
- Error/Duplicate Removal: We eliminate duplicate, broken, or overlapping entities before export. We downsize all linework to what you need only, and remove all excess clutter for efficient field use.
- Simplified Layers: All linework is organized into different layers that are assigned simple and easy colors and names.
3D Model Generation

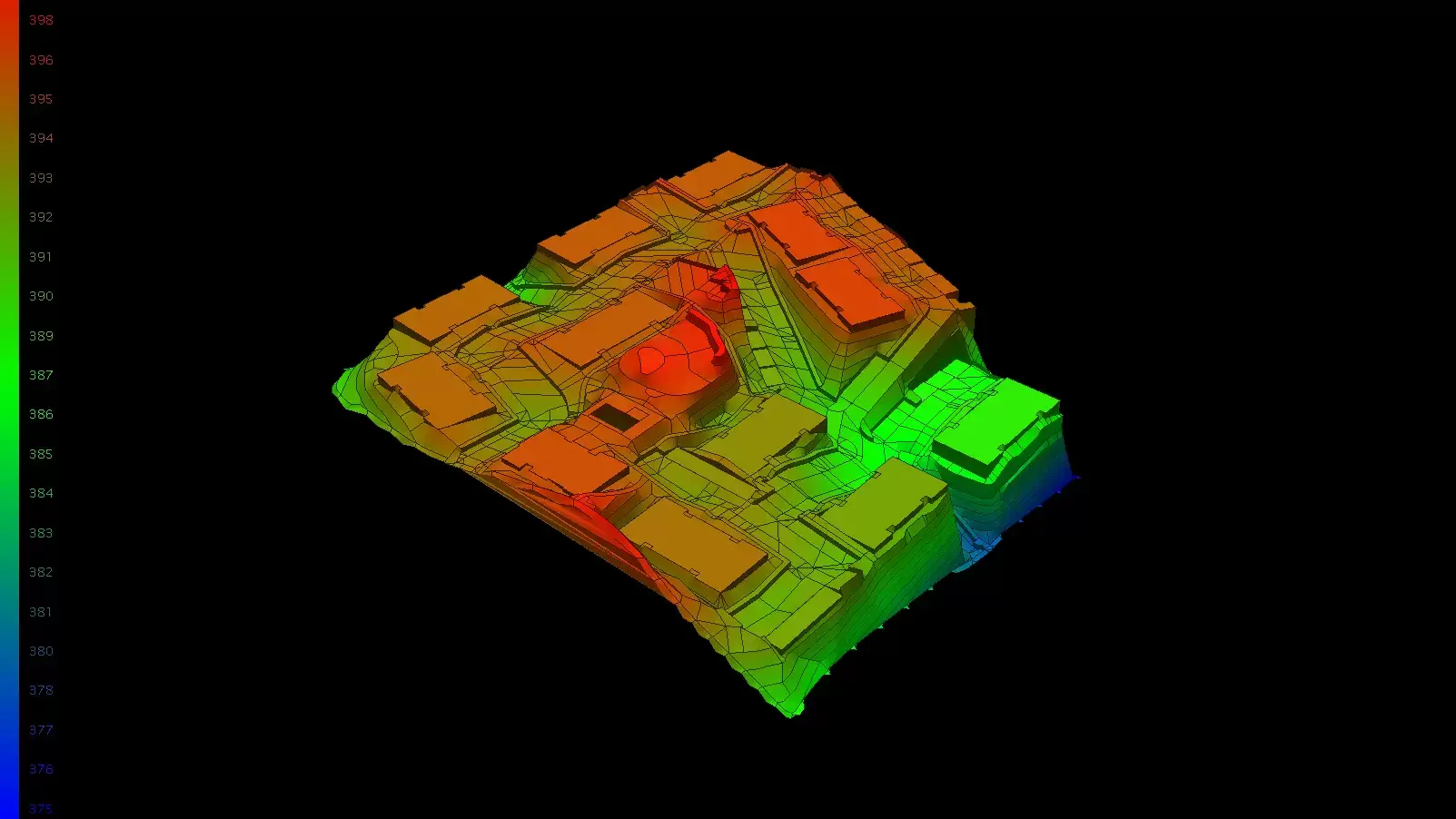

- Digital Terrain Models (DTM): High‑resolution surface meshes built from elevated polylines.
- Earthwork Quantities: Simple Cut-Fill volumes using proposed and existing surface models.

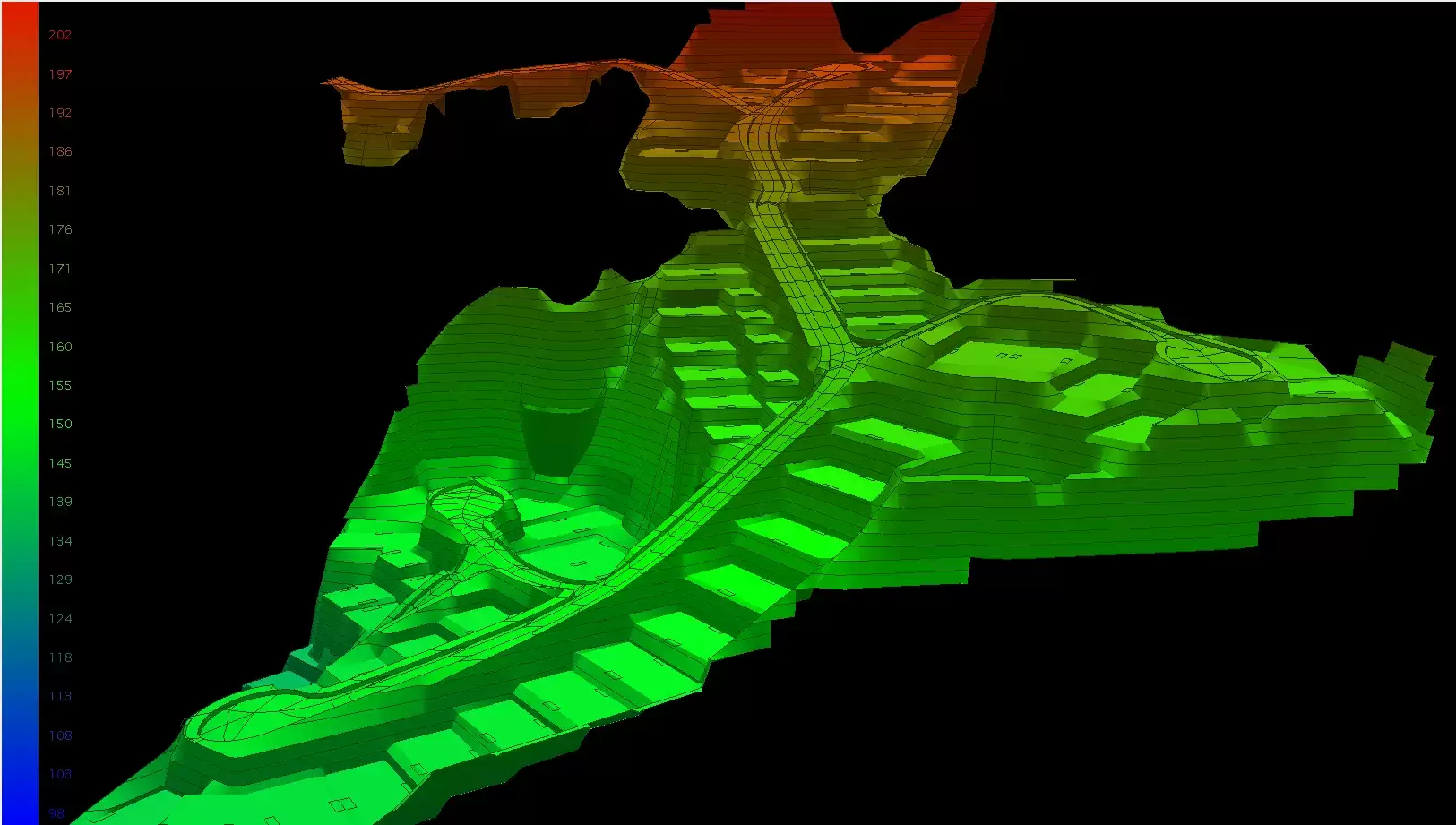

- Roadways: We will incorporate road profiles and cross sections to assure accurate proposed grading.
- Parking Lots: We will assure ADA requirements and a minimum positive pitch (1%+) are met.

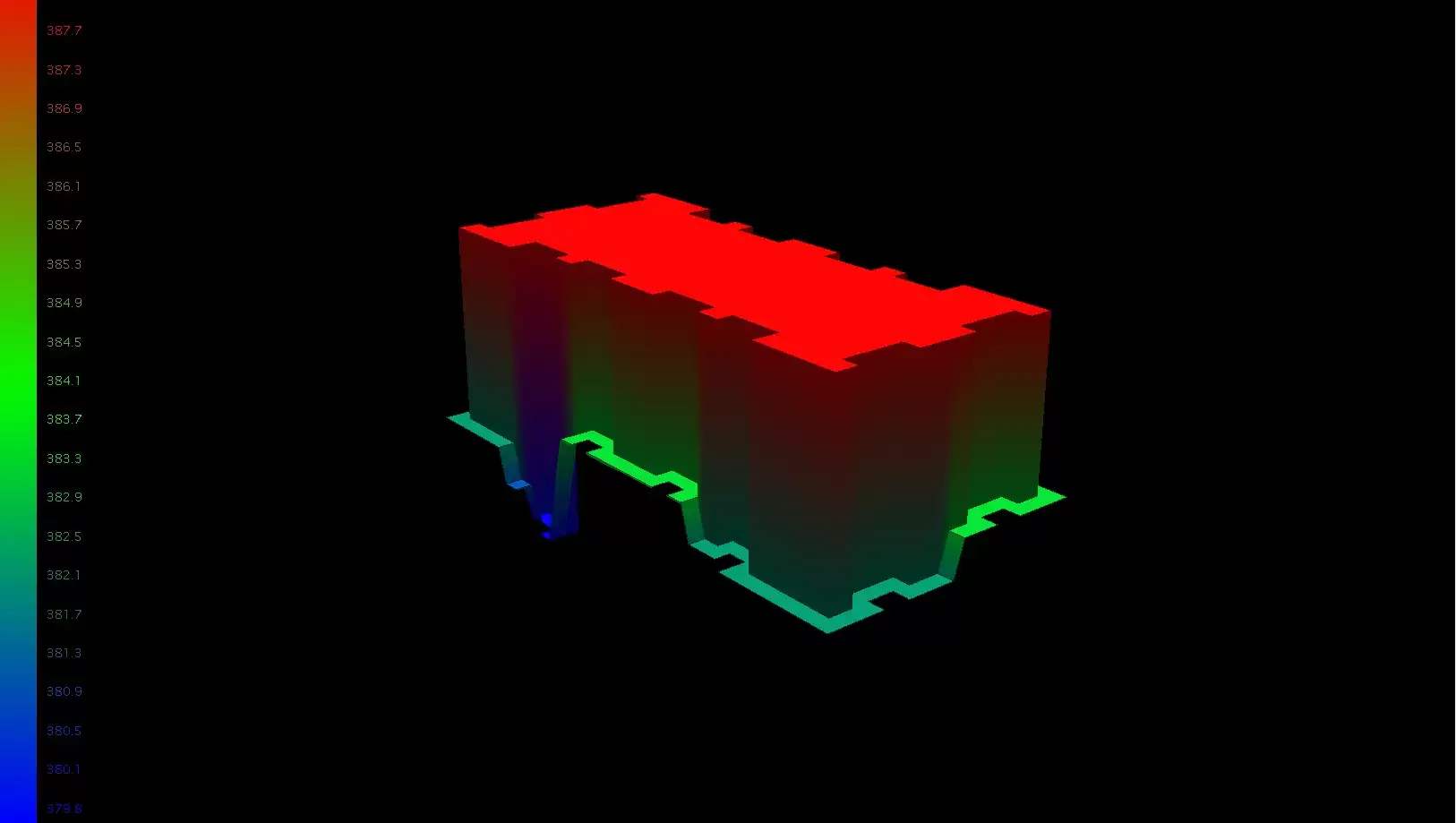

- Building Foundation/Footings: Excavator machine control and our building footing 3D model, is the only way to prepare footings.
Equipment Support & File Formats
Topcon
- Compatible Formats: .TN3, .GC3, .PT3, .LN3, and .TP3
Trimble
- Compatible Formats: We will generate any/all Trimble files to meet your data collector and heavy equipment needs.
Carlson SurvPC (Data Collector)
- Compatible Formats: .CRD, .DXF, .TIN, .CL (Road Stakeout), and .PRO (Road Stakeout)
Our Workflow
- Project Intake
You supply source CAD files (DWG), plan sets (PDF) and any/all existing survey control data available (CRD, TXT, DWG). - Formatting
We clean up and downsize all linework, build the 3D models, and perform multiple checks to confirm accuracy. - Equipment‑Specific Export
Files are exported in the exact formats your GPS survey equipment and machine control require. - Ongoing Support
Need tweaks or updated files due to plan revisions? Our technicians are on call to ensure your field operations run smoothly.
Get Started Today
Equip your field teams with reliable, GPS‑ready linework and 3D models from 3D Sea LLC. Contact us to discuss your project requirements and receive a customized quote:
- Email: info@3dseallc.com
- Phone: (774) 586‑7644
Let us handle the technical details so you can focus on getting the job done right—on time and on budget.
