Flatrock Brook Condominiums
Roads and Lots Development Project – Windham, NH
Client: Rick Granese General Contractor (Newburyport, MA)
Timeline: March 2025 – Present
Overview

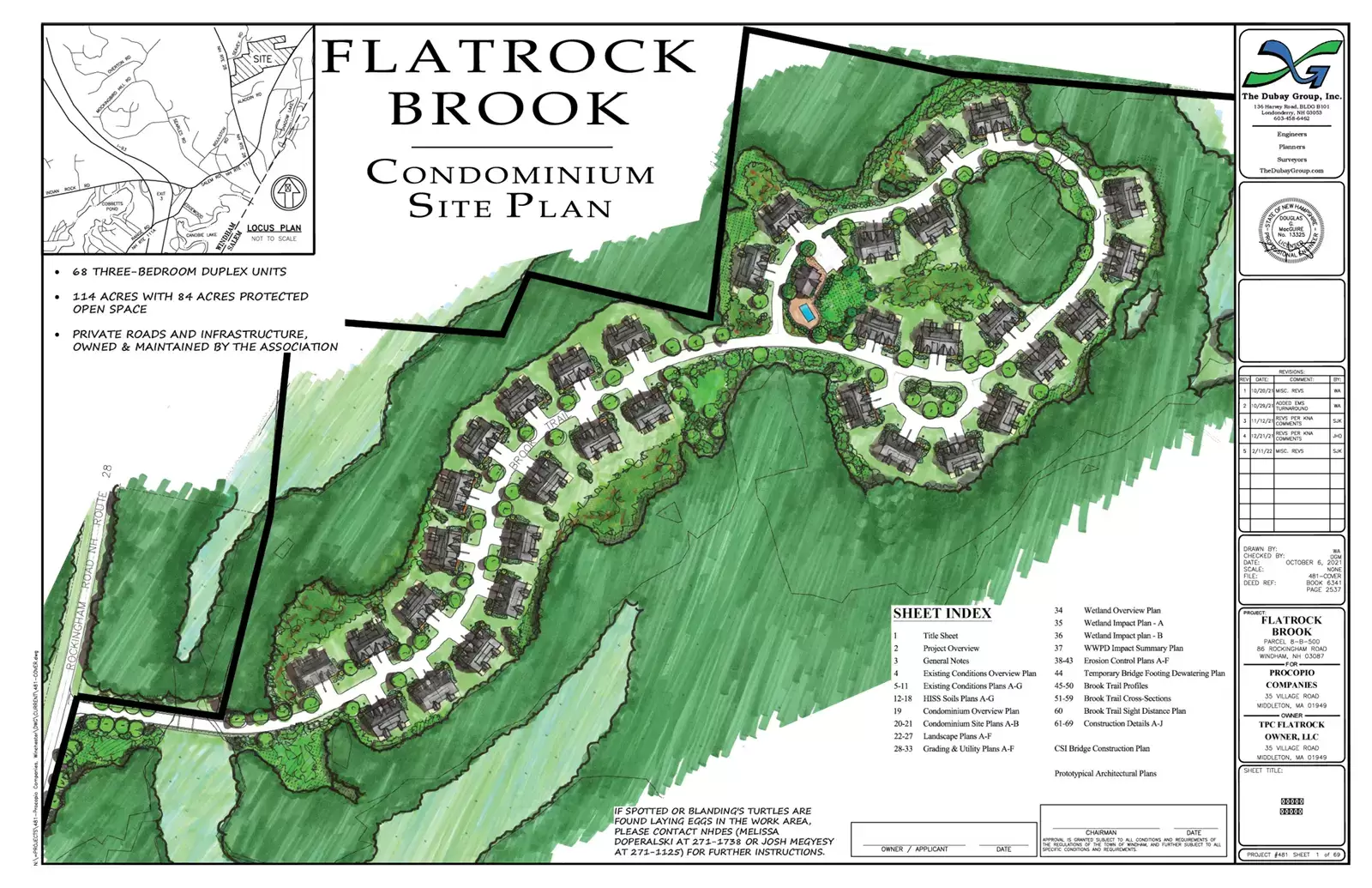

3D SEA LLC provided full-scope CAD and modeling services for Phase 2 of a 68-unit condominium project in Windham, New Hampshire. This phase included two new roads and a clubhouse. Our team was brought in to prepare GPS layout files and review the proposed grading design to ensure ADA compliance and positive drainage across the site.
Services Provided:
- CAD cleanup and linework creation
- Road centerline stakeout file generation
- 3D data creation and model development
- Grading and ADA compliance review
- Conversion and preparation of Topcon files for GPS layout
Challenge
The client needed a verified and optimized 3D site model to support GPS machine control. The existing CAD files required cleanup, layer management, and grading updates to ensure accuracy, ADA compliance, and efficient field use.
Solution
3D SEA LLC conducted a comprehensive CAD review and modeling process to prepare accurate, field-ready data.
CAD Review & Cleanup
- Removed unnecessary and duplicate linework
- Edited, renamed, and simplified CAD layers
- Verified dimensions and matched CAD to the latest plan revisions
3D Modeling & Grading Validation

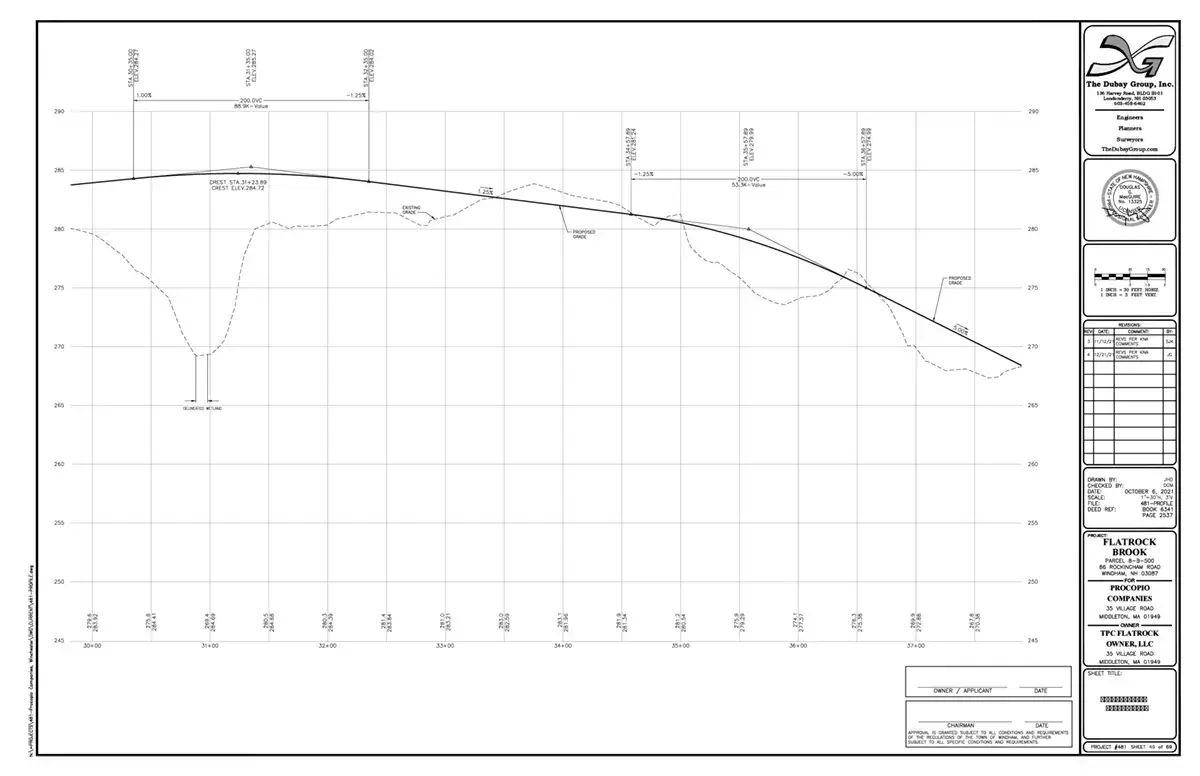

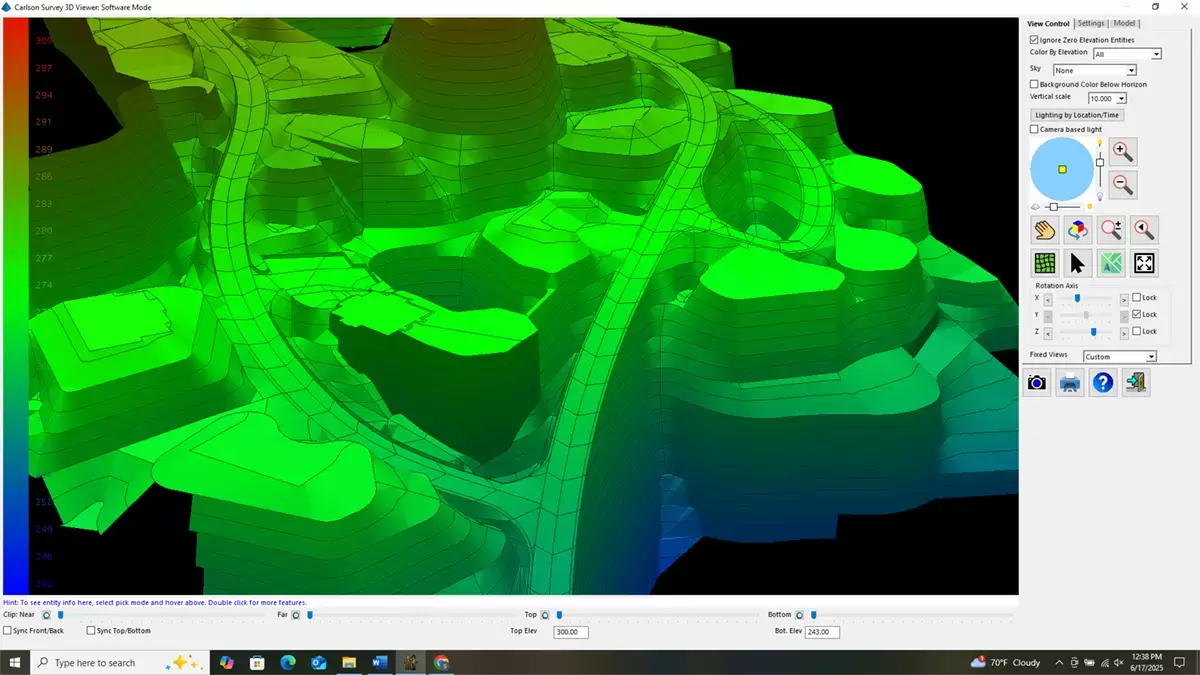

- Generated new 3D data and integrated road profiles and cross-sections
- Validated proposed grades between plans and model
- Confirmed ADA accessibility and minimum 1% positive drainage
Deliverables Provided
- Road centerline stakeout files (
.cl,.pro,.txt) - Point files (
.crd,.txt) - Cleaned linework file (
.dxf) - 3D surface model (
.tin) - Topcon machine control file (
.tp3)
Results
With 3D SEA LLC’s precise CAD and 3D modeling support, the client was able to stay ahead of schedule, improve layout accuracy, and maximize efficiency and profit throughout the project.
